Dioxin Decomposition Catalysts Dioxin Decomposition Catalysts
- Applications
- Functions
Basic Information
Eefficiently detoxify dioxins generated from incinerators for municipal and industrial waste, etc.
Simultaneous removal of NOx and dioxins is possible by spraying ammonia.

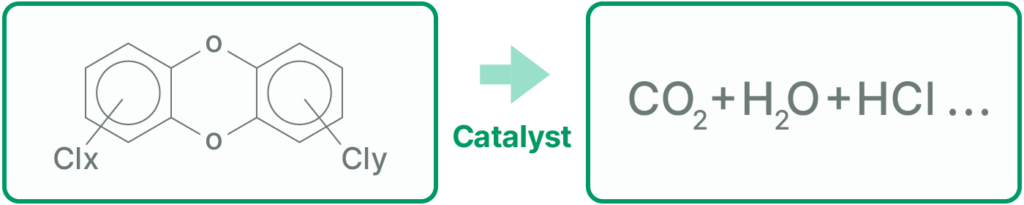

Dioxin Decomposition Reaction
Features and Properties
With our proprietary titania-based composite materials and advanced manufacturing technologies, we are able to achieve a good balance of the following features.
Catalyst Performance
- Simultaneous removal of NOx and dioxins is possible by spraying ammonia.
- High activity even below 200°C
- No need for secondary processing
Highly durable (Long cycle life)
- Resistant to poisoning, Inhibits the attachment of sulfur oxide, Prevents clogging
Wide Temperature Range
- 160～350℃
Product Details

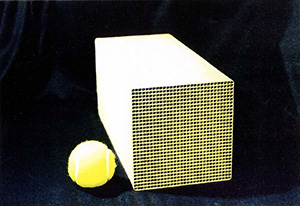

Honeycomb Shape
We can design an optimal number of cells, opening, and catalyst volume for each order.
Face Dimensions
- 150 mm × 150 mm
Length
- Maximum 1,060 mm
Typical examples
| Number of Cells (individual) | 20 × 20 | 25 × 25 | 30 × 30 | 35 × 35 | 40 × 40 |
|---|---|---|---|---|---|
| Pitch (mm) | 7.35 | 5.95 | 4.95 | 4.25 | 3.7 |
| Opening (mm) | 6.35 | 5.05 | 4.15 | 3.65 | 3.2 |
