IONEL™ :Lithium salt for Lithium-ion batteries/ Antistatic application

Click here for antistatic agents

Electrolyte for Lithium-ion batteries

ProductIONEL™ LF-101

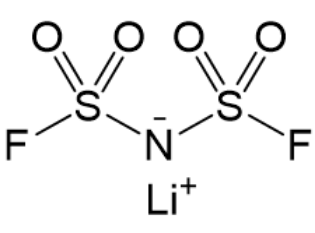

Common NameLithium bis(fluorosulfonyl)imide "LiFSI"
IONEL™

IONEL™ is LiFSI used as the electrolyte in Lithium-ion batteries. Nippon Shokubai developed the mass-production technology for LiFSI using proprietary synthesis and refining techniques for the first time in the world in 2013.
We decided to expand its production capacity of 2,000 MT/ year by 2023, adding to current production capacity of 300 MT / year, and we are planning further expansion to respond to the expected future increase in demand.
IONEL™ is highly pure, has few solvents and by-products, and exhibits stable electrochemical properties. IONEL™ has been adopted and certified by many battery manufacturers all over the world.
We have applied for patents suitable for Lithium-ion battery applications all over the world and own many patent rights. It complies with laws and regulations in major countries, so customers can use it with confidence in terms of quality and intellectual property.

Click here for Regarding IONEL patent rights

Features
Various studies have been conducted as the main electrolyte salt for Lithium-ion batteries.
And the improvements effect such as,
  • Long lifeClick here for an life characteristic evaluation
  • Discharge and input / output at lower temperatureClick here for an example of lower temperature evaluation
  • Storage at higher temperatureClick here for an example of higher temperature evaluation

are confirmed.

The similar effect can be observerd when used as an additive.

Application
  • Electrolyte for Lithium-ion batteries
  • Additive for Lithium-ion batteries
  • Electrolyte for Lithium primary batteries
  • Electrolytes for other electrochemical devices
Physical characteristics and properties
Molecular weight/187(g/mol)
CAS No./171611-11-3

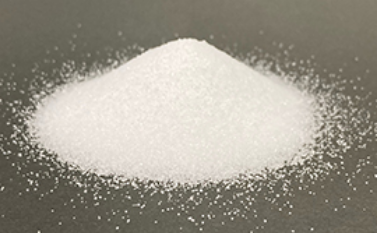

Appearance/White powder
Purity/99.9% or more
Melting point/140℃
Thermal decomposition temperature/300℃ or more
Solubility/Dissolve 50 wt% or more in DMC and EMC

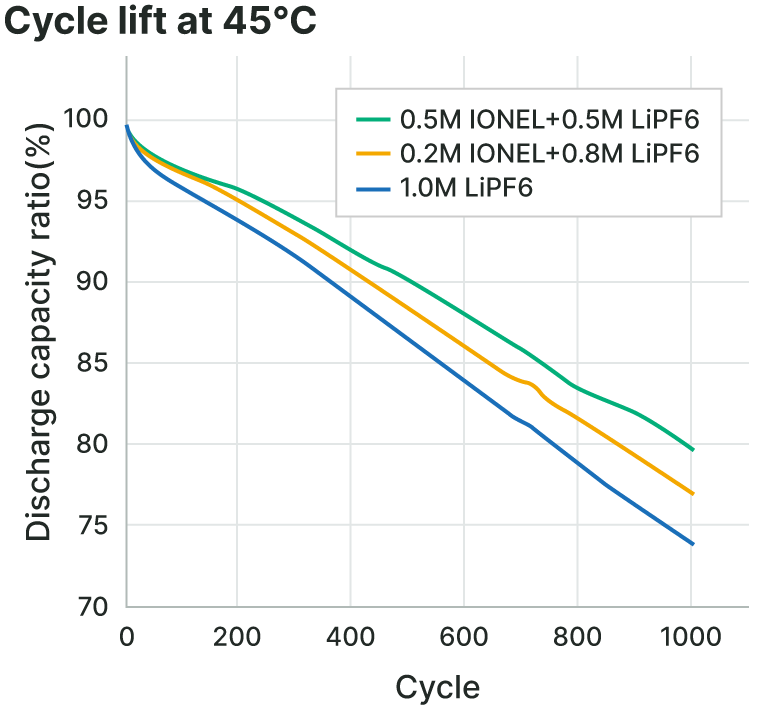

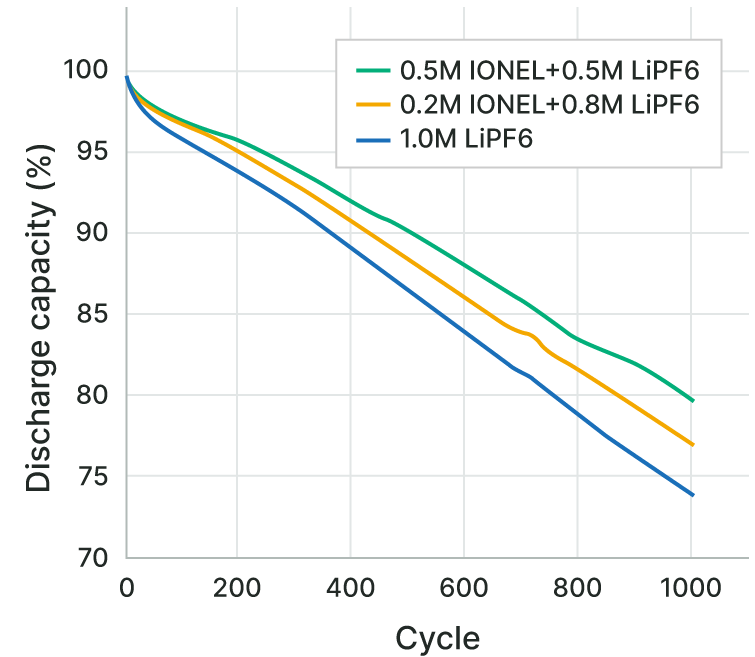

Cycle life

IONEL™ improves high temperature cycle life.
This enables you to design batteries with little capacity loss even at high temperatures, contributing to longer cycle life.

[Evaluation]
Positive electrode: NMC
Negative electrode: Graphite
Temperature: 45℃

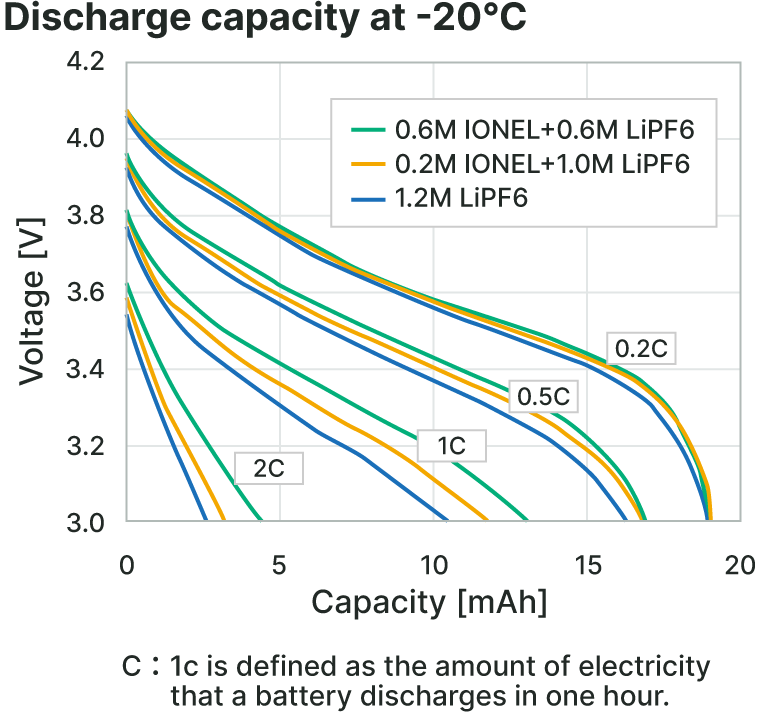

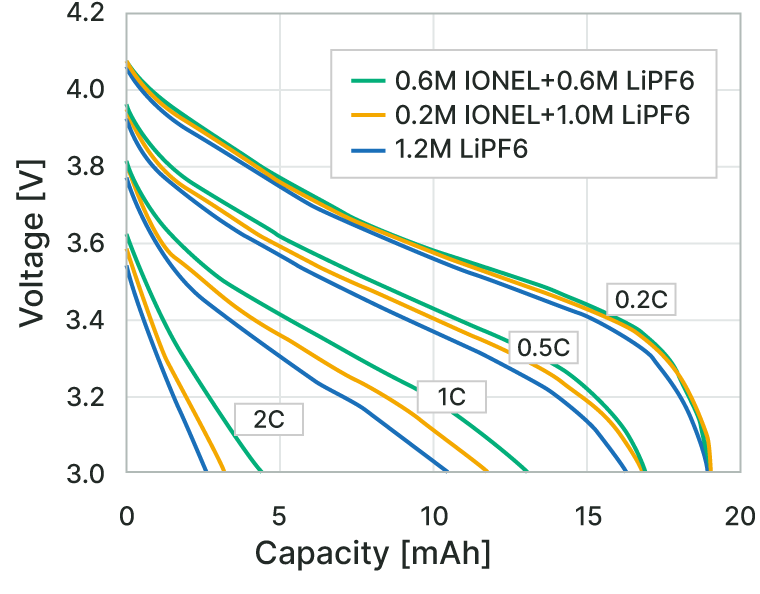

Low temperature characteristic

IONEL™ improves the lower temperature discharge capacity.
This enables you to design batteries with little capacity loss even at low temperatures.

[Evaluation]
Positive electrode: NMC
Negative electrode: Graphite
Temperature: -20℃

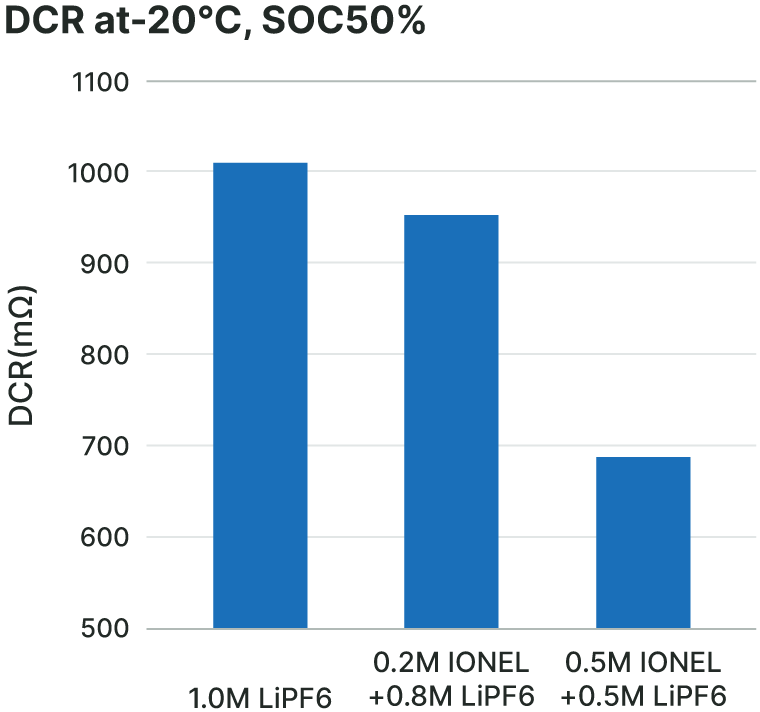

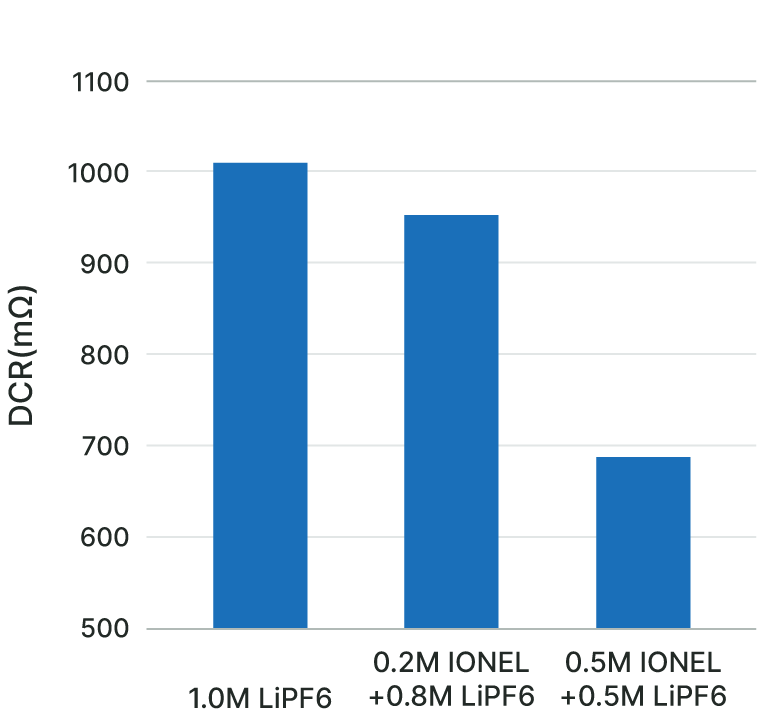

Low temperature input/output

IONEL™ improves the input / output at low temperatures, which is effective in reducing resistance.
This enables you to design safe and highly flexible battery without dendrite even at low temperatures.

[Evaluation]
Positive electrode: NMC
Negative electrode: Graphite
SOC: 50%
Temperature: -20℃
Measured by an external evaluation organization
(LIBTEC: Consortium for Lithium Ion Battery
Technology and Evaluation Center)

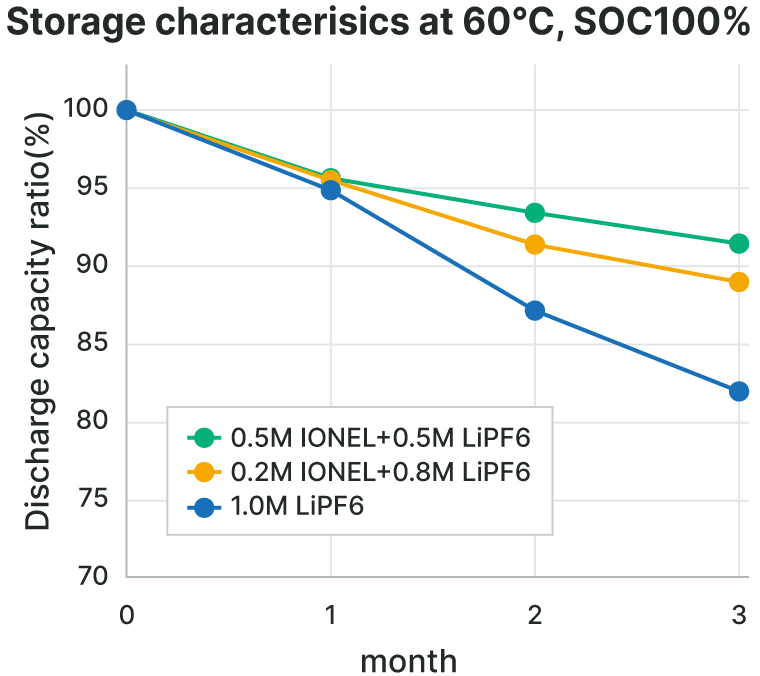

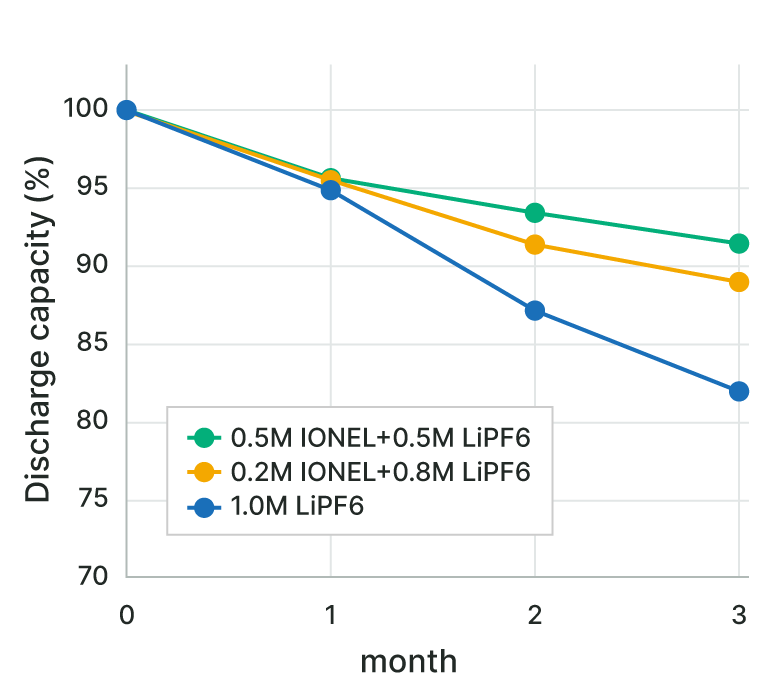

High temperature characteristic

IONEL™ improves the capacity retention after high-temperature storage.
This enables you to design batteries with little capcity loss even at high temperatures.

[Evaluation]
Positive electrode: NMC
Negative electrode: Graphite
SOC: 100%
Temperature: 60℃
Notice
  • Regarding IONEL™ patent rightsClick here for IONEL™ patent rights

Contact us and request a sample

Antistatic agents

Product IONEL™ LF-101
Common NameLithium bis(fluorosulfonyl)imide "LiFSI"
Features
  • Good antistatic performance can be obtained by small amount
  • Reduces surface resistance
  • Not affected by humidity
  • Electrolyte with high thermal stability
  • Electrolyte with high solublity in solvents (eg water, ethyl acetate, butyl acetate) and resins
Application
  • Antistatic agentsClick here for antistatic agents
Antistatic agents

Good antistatic performance can be obtained by small amount.

[Evaluation]
LiFSI added to PEG-containing acrylic adhesive composition
Surface resistivity was measured in a dry environment at 23℃
Physical characteristics and properties
Appearance/White powder
Purity/99.9% or more
Melting pointo/140℃
Thermal decomposition temperature/300℃ or more
Solubility/Dissolve 40wt% or more in water, ethylacetate or butylacetate

Contact us and request a sample
