Reactive Diluent (AOMA™ Series Applications)
Reactive Diluents AOMA™ Series Lineup
| AOMA™ | FX-AO-MA-TP-G | FX-AO-MA-CH | |
|---|---|---|---|
| Development Stage | Mass Production | Pilot (In Development) | Pilot (In Development) |
| Features | Low Viscosity Excellent Dilutability High Toughness | Low Volatility High Reactivity High Tg | Low Viscosity Low Volatility High Adhesion |
| Chemical Structure |  |  |  |
| Molecular Weight | 156.2 | 440.5 | 224.3 |
| CAS No. | 219828-90-7 | ー | ー |
| Appearance | Colorless, Clear Liquid | Pale Yellow, Clear Liquid | Pale Yellow, Clear Liquid |
| Viscosity(mPa・s, 25℃) | 1.6 | 20.0 | 5.2 |
| Refractive Index (nD, 25℃) | 1.442 | 1.463 | 1.466 |
| Tg (℃)※ | 78 | 105 | 72 |
| Td5 (℃)※ | 317 | 333 | 283 |
| Tensile Strength (MPa)※ | 45.8 | 43.5 | 43.2 |
Features

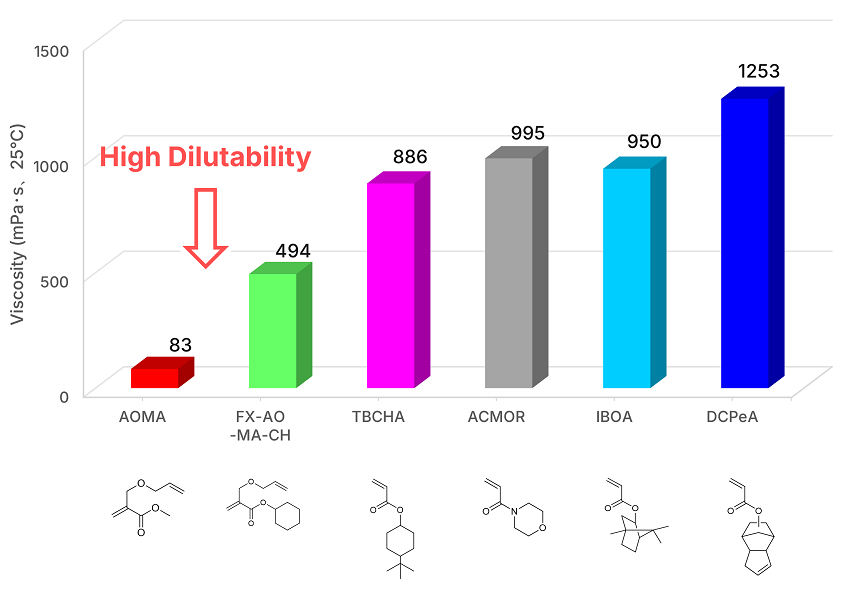

Dilutability (Monofunctional Type)
The AOMA™ series (AOMA, FX-AO-MA-CH) features low viscosity and excellent dilutability for multifunctional monomers, contributing to both viscosity reduction and performance enhancement in liquid formulations.
TBCHA: 4-tert-butylcyclohexyl acrylate, ACMOR: 4-acryloyl morpholine
IBOA: Isobornyl acrylate, DCPeA: Dicyclopentenyl acrylate

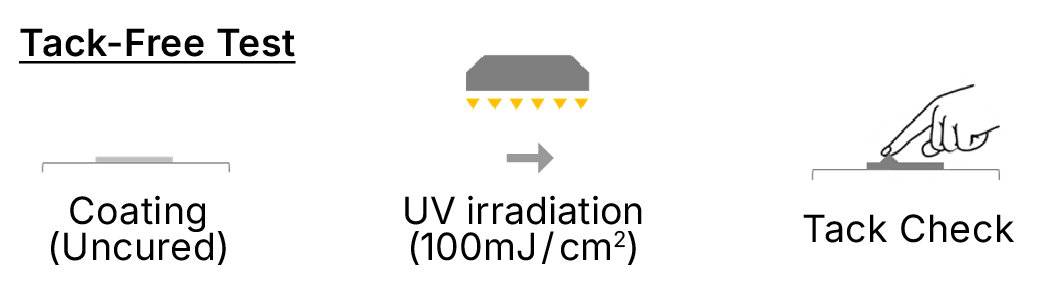

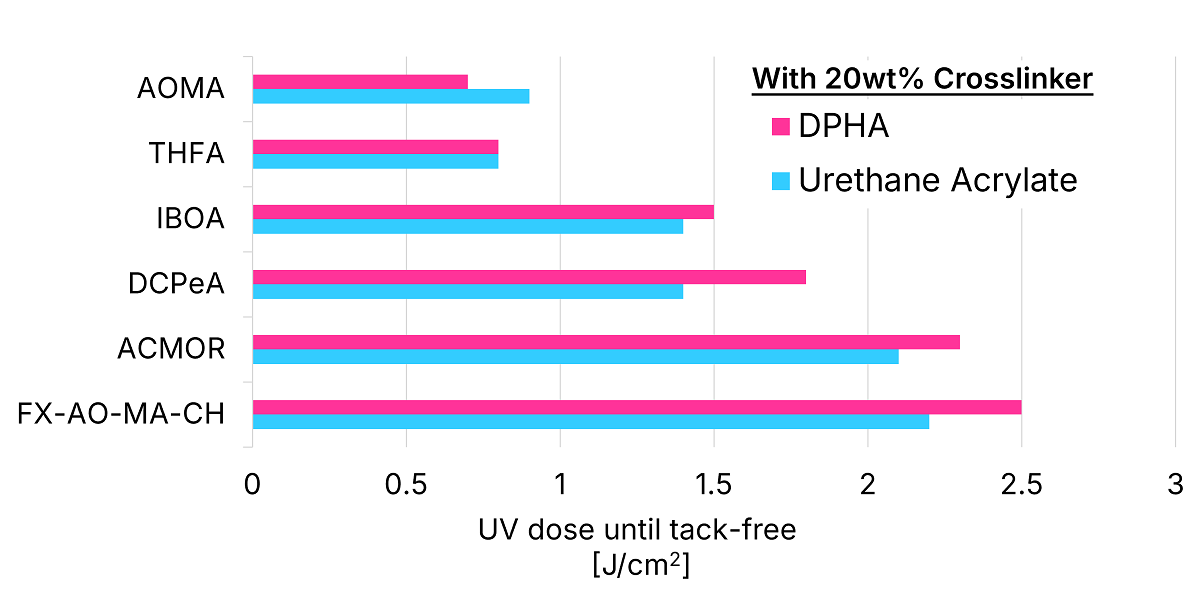

UV Curability (Monofunctional Type)
The AOMA™ series (AOMA, FX-AO-MA-CH) is less susceptible to oxygen inhibition and exhibits excellent radical polymerizability even under thin-film curing conditions in air.
Film thickness: 10 μm Curing conditions: 100 mW/cm², 1 sec/pass, in air
THFA: tetrahydrofurfuryl acrylate, IBOA: isobornyl acrylate
DCPeA: dicyclopentenyl acrylate, ACMOR: 4-acryloyl morpholine

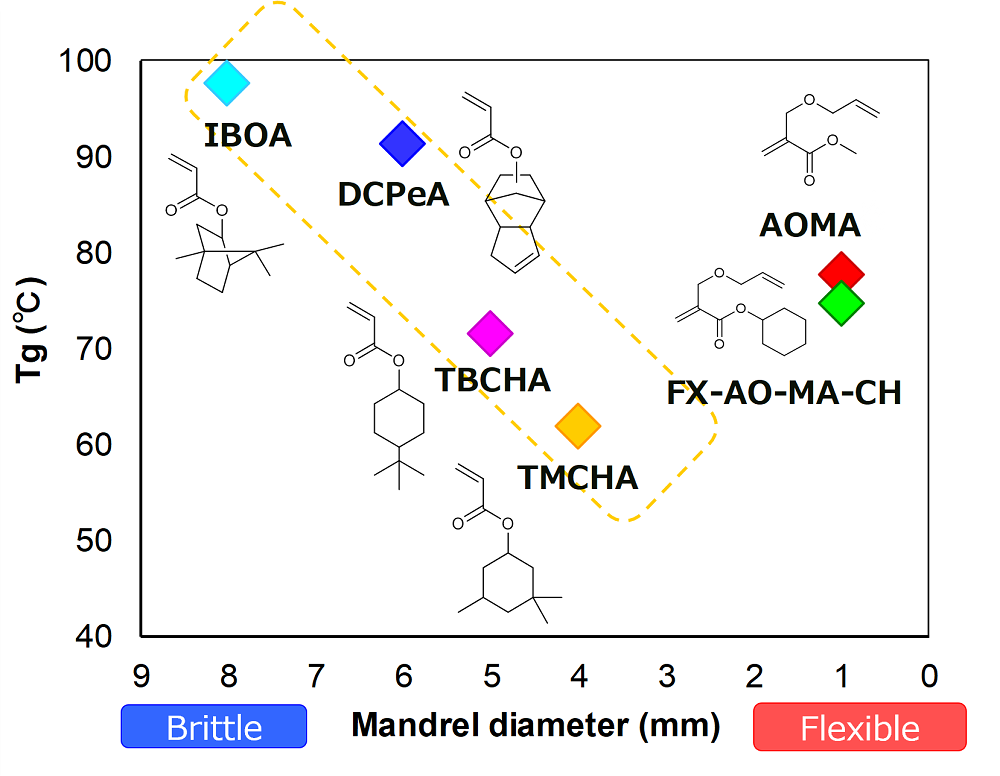

Balanced High Tg (Thermal Resistance) and Flexibility (AOMA™ / FX-AO-MA-CH)
Blending AOMA™ and FX-AO-MA-CH enables a balance of high Tg (heat resistance) and flexibility.
Curing conditions: UV irradiation (6 J/cm²)
Tg (℃): JIS K 7244-4
Mandrel test: JIS K 5600-5-1, film thickness 40 μm / PET substrate
IBOA: isobornyl acrylate, DCPeA: dicyclopentenyl acrylate
TBCHA: 4-tert-butylcyclohexyl acrylate, TMCHA: 3,3,5-trimethylcyclohexyl acrylate
Balanced High Tg (Heat Resistance) and Flexibility (FX-AO-MA-TP-G)
The use of the high-Tg type FX-AO-MA-TP-G also enables a balance of high Tg (heat resistance) and flexibility.
Curing conditions: UV irradiation (6 J/cm²)
Tg (℃): JIS K 7244-4
Mandrel test: JIS K 5600-5-1, film thickness 40 μm / PET substrate
DPGDA: dipropylene glycol diacrylate, TPGDA: tripropylene glycol diacrylate, HDDA: 1,6-hexanediol diacrylate
