Polyethyleneimine Ethoxylate

Product namePolyethyleneimine Ethoxylate(PN-100)
StructurePolyethyleneimine Ethoxylate Structure
CAS No.68130-99-4
AppearanceLight brown viscous liquid
Solid content80%
Viscosity≦700 mPa・s(30℃)
Molecular Weight13,000
Density1.128 g/ml(30℃)
pH8-11 (1% aq.)
ApplicationDetergents, Papermaking agents (deinking, pitch control), Pigment dispersant, Water treatment agents (scale inhibitor), Abrasive grains dispersant, Plating additives

Characteristics

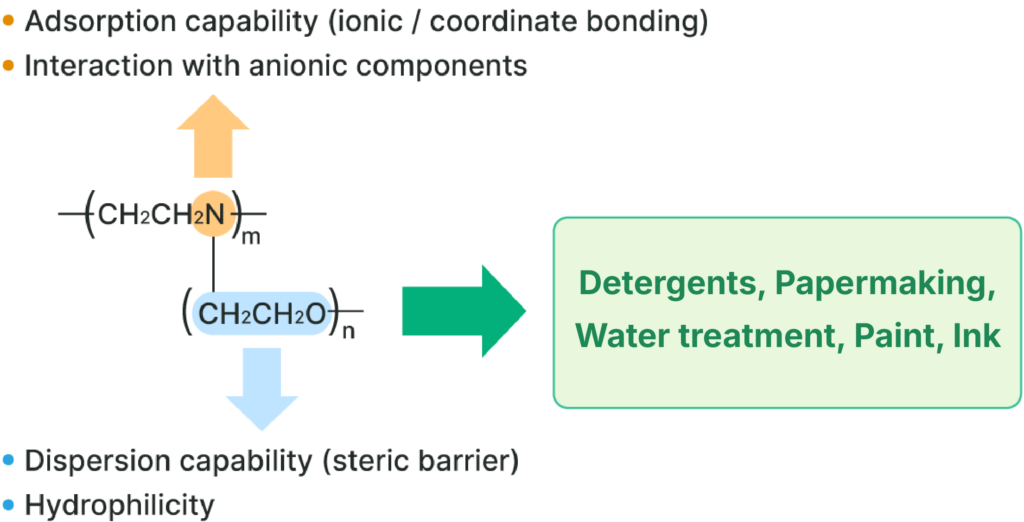

Polyethyleneimine ethoxylate (PN-100) is water-soluble nonionic polymer and has various characteristics below. It is widely applicable.

  • High dispersibility of various types of particles
  • Booster for anionic surfactants (lowering CMC, promoting adsorption)
  • Coordinate adsorption to metal surface
  • High solubility in many kinds of solvent
  • High compatibility with various types of surfactants
  • Low effect on viscosity due to its highly-branched structure

Application

AreaApplicationCharacteristics of PN-100
DetergentDetergentBooster for anionic surfactants (lowering CMC, promoting adsorption)
Improving anti-redeposition ability
Synergy with enzyme, Improving stability of enzyme
Improving cleaning performance
High compatibility (PN-100 can be used in concentrated detergent)
PapermakingDeinking agent
Pitch control agent
Improving deinking and anti-redeposition ability
Adsorption to pitch and Improving dispersibility
Water treatmentScale inhibitorAdsorption to silica scale and Improving dispersibility
Paint, InkPigment dispersantAdsorption to anionic pigment and Improving dispersibility
SemiconductorAbrasive grains dispersant for CMP
(Chemical Mechanical Polishing)
Adsorption to silica abrasive grains and Improving dispersibility
Surface treatmentPlating additivesAdsorption to metal surface and Plating inhibition effect

In using the product in relation to the application referred to in this booklet, please pay attention to existence of the intellectual property rights (including patent and its application) owned by any third parties and avoid the possible infringement of such intellectual property rights. NIPPON SHOKUBAI shall in no event be responsible for any damages or liabilities caused by infringement or alleged infringement of said intellectual property rights due to the above-mentioned use of the product.

< Dispersibility of Particles >

PN-100 has high dispersibility of various types of particles. For example, dispersibility of natural clay and talc (magnesium silicate) is shown below.

Dipersibility performance of clay

Method:
We prepare and stir Clay water containing a predetermined amount of clay, surfactant and polymer. The clay water is transferred to a test tube and let stand for 1 hour. The absorbance was then measured. (the dispersion of clay leaves it turbid and high in absorbance)
Condition:
Surfactant(LAS) 0 or 1250ppm, Polymer 40ppm, Water hardness 15dH, Temp. 25℃

*LAS: Linear Alkylbenzene Sulfonates

Dipersibility performance of talc

Method:
We prepare and stir Talc particle water containing a predetermined amount of talc and polymer. The talc water is transferred to a test tube and shook, and let stand for predetermined time. The absorbance was then measured. (the dispersion of clay leaves it turbid and high in absorbance)
Condition:
Talc 500ppm, polymer 10ppm, Ca concentration 200ppm, Temp. 25℃

< Booster for anionic surfactants >

PN-100 can improve interfacial properties of anionic surfactant by adding a small amount of it.
This effect results in usage reduction of surfactant and performance improvement.

CMC
(mmol/dm³)
Critical Micelle Concentration
Molecular occupied area
(nm²)
Area occupied by one
surfactant molecule
ΔG ads
kJ/mol
Tendency of adsorption
LAS1.191.16-59.4
LAS/Sodium polyacrylate1.100.76-35.0
LAS/PN-1000.922.30-84.7
Method:
We measure surface tension by Wilhelmy method at several concentration of surfactant.
Condition:
Surfactant 0.1 - 10 mmol/dm³, Polymer 8.3ppm, Temp. 25℃

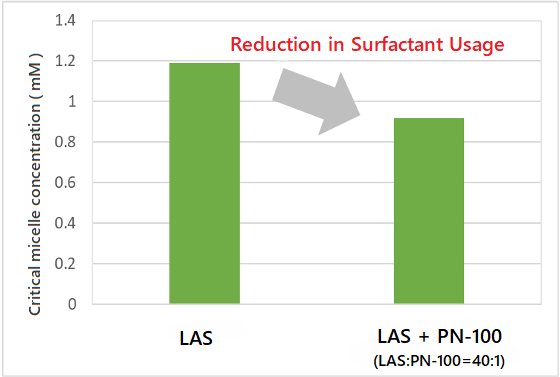

① Addition of PN-100 to surfactant solution results in a reduction of critical micelle concentration (CMC). It means that PN-100 has the potential for usage reduction of surfactant, because most performance (cleaning, penetration) of surfactant critically changes around CMC.

② Adsorption Gibbs energy (ΔG abs) reduction shows that PN-100 promotes the adsorption of surfactant to hydrophobic surface.

< Anti-redeposition ability for laundry detergent >

PN-100 can use as a raw material for laundry detergent. PN-100 critically improves anti-redeposition ability.

Method:
A contaminated clothing and a white clothing are put into a pot and a cleaning operation is carried out. The contamination level of the white cloth is then evaluated by a color difference meter.
Condition:
Equipment targot-o-meter, Surfactant 250ppm, Polymer 8.3ppm, Water hardness 15dH, Temp. 25℃, Bath ratio 30

*LAS: Linear Alkylbenzene Sulfonates
*PAE: Polyoxyethylene Alkyl Ether

In terms of anti-redeposition ability, you can reduce usage of surfactants for laundry detergent. The result below shows that same performance is achieved with half dosage of surfactants.

Method:
A contaminated clothing and a white clothing are put into a pot and a cleaning operation is carried out. The contamination level of the white cloth is then evaluated by a color difference meter.
Condition:
Equipment targot-o-meter, Surfactant 125 or 250ppm (LAS:PAE = 1:1), Polymer 8.3ppm, Water hardness 15dH, Temp. 25℃, Bath ratio 30
