Melamine and Benzoguanamine Fine Particles: EPOSTAR™ Series

• Main Applications

  Toner additives, Light diffusion agents, Matting agents

• Applications
  • Electronics
• Functions
  • Resin Modification

• Basic Information
• Features and Properties
• Examples of Applications
• Product Details
• Nippon Shokubai’s Fine Particles

Basic Information

EPOSTAR™ are heat-cured, spherical fine particles with melamine and benzoguanamine resins as raw materials.
We offer nine types of standard item numbers, with three types of resin structures.

Features and Properties

1. Excellent heat resistance and solvent resistance
2. Particle size adjustable from 0.1 – 9μm
3. High refractive index (n = 1.66)
4. Positive charge derived from resin structure (High density N atom)

Examples of Applications

• Toner additives
• Light diffusion agents
• Matting agents

Product Details

Features

Chemical Name by EPOSTAR™ Type

MS, M05, L15	Benzoguanamine/formaldehyde condensate
M30	Benzoguanamine/melamine/formaldehyde condensate
SS, S, FS, S6, S12	Melamine/formaldehyde condensate

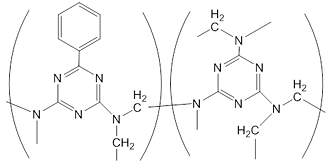

Chemical Structure

MS, M05, L15	M30	SS, S, FS, S6, S12

Properties

Type	Average Particle Diameter (μm)	Particle Size Distribution	Refractive Index	True Specific Gravity
MS	2	Broad	1.66	1.4
M05	5
L15	9
M30	3	Middle
SS	0.1			1.5
S	0.2
FS※	0.2
S6	0.4
S12	1.2

* Please be sure to read the Chemical Products Safety Data Sheet (SDS) when handling this product.
